If an outboard engine bracket is the ultimate add-on for most outboard-equipped boats, this particular one will up the ante in almost all respects. You will not only benefit from a substantial increment in speed and fuel range without having to replace your existing twin outboard engines but you’ll also get away with repowering with much more powerful, and potentially heavier ones if you choose to. Your stance at rest will be at a flatter angle as the extra flotation volume, applied just at the right spot for maximum leverage, could help compensate for the extra weight of the bigger engines, but more than that you will indeed gain a flatter running angle, mostly due to the generous setback of this bracket. With that, you will gain a more efficiently running hull and a considerably drier cockpit
You will benefit from also having an overall better handling boat and one that can shoot out of the hole usually in half the time it used to take with the placement of the old engine. It will also make your boat safer offering a way lower platform from which to push yourself up to the deck when in the water as well as the ideal place where to affix an available as an option swim ladder.
Our fabricators have been putting together engine brackets almost since they became a thing in deep-V offshore racing boats, whose roots can be followed back to our home base in sunny Miami, arguably the US cradle of the class. We learned the ropes at the elbow of the greats back when Thunder Alley (NE 188th St.) was a barren expanse and three large warehouses where the fastest and meanest boats in the world were hand-built, and have maintained, through different iterations, an uninterrupted presence in the Southern Florida boating scene ever since. Nowadays, we leverage all of that hard-won experience with the latest tech in the form of our top-of-the-line CAD workflow, with parts & assemblies finite analysis, added to the exacting precision and unmatched clean lines and structural integrity that CNC, digital routing, waterjet cutting, and a mainly computer-aided manufacturing process affords.
And there’s nothing small-time about our outboard engine bracket products as our stuff is sold as OEM to most of all Greater Miami-based boat manufacturers and some of the biggest in upstate Florida, and we have type certifications from the NMMA and the ABYC. If you have outboard engine bracket questions don’t hesitate and do contact us for a no-compromise consultation.
Note: Please be advised that all of our brackets are made to order and ship via expensive LTL freight so we won't accept returns. Check your boat's measurements carefully and make sure your order perfectly reflects what you want.
Highlights:
- All-aluminum construction using 0.375” (transom and engine plates) and 0.250” (rest of the structure) thick cold-formed Alcoa 5052 H32 series sheets and schedule 40 6061-T6 series aluminum tubing for our optional wrap-around handlebar.

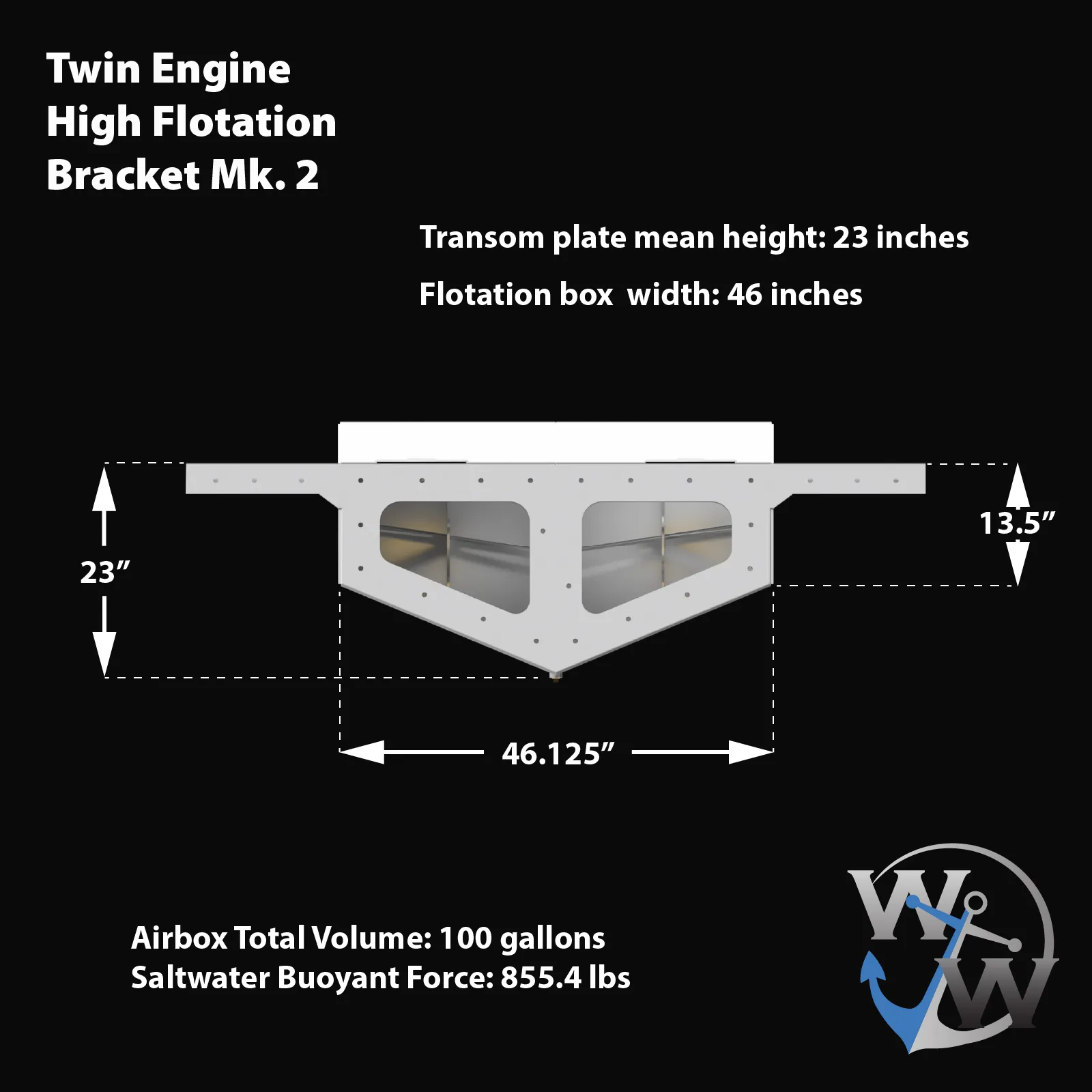

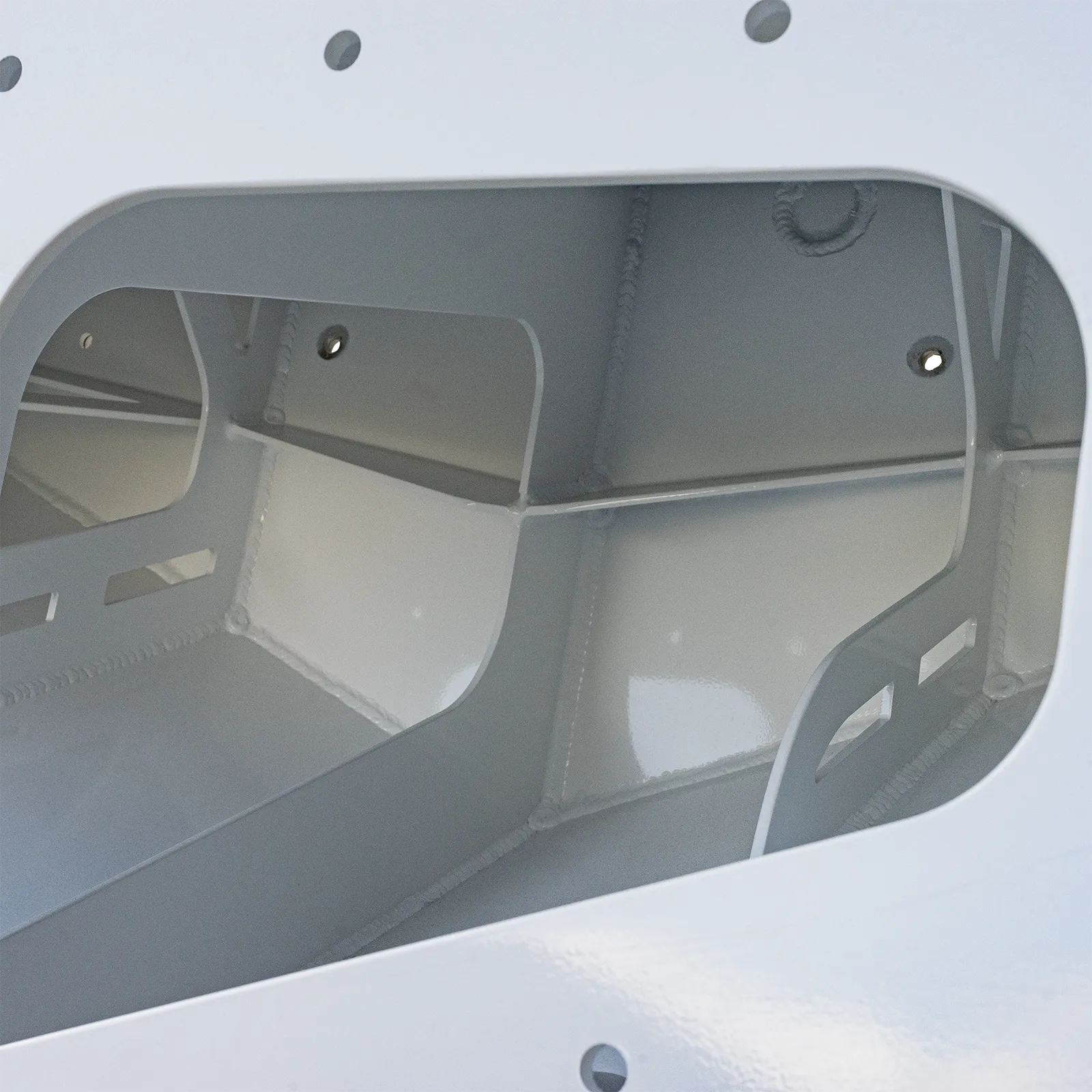

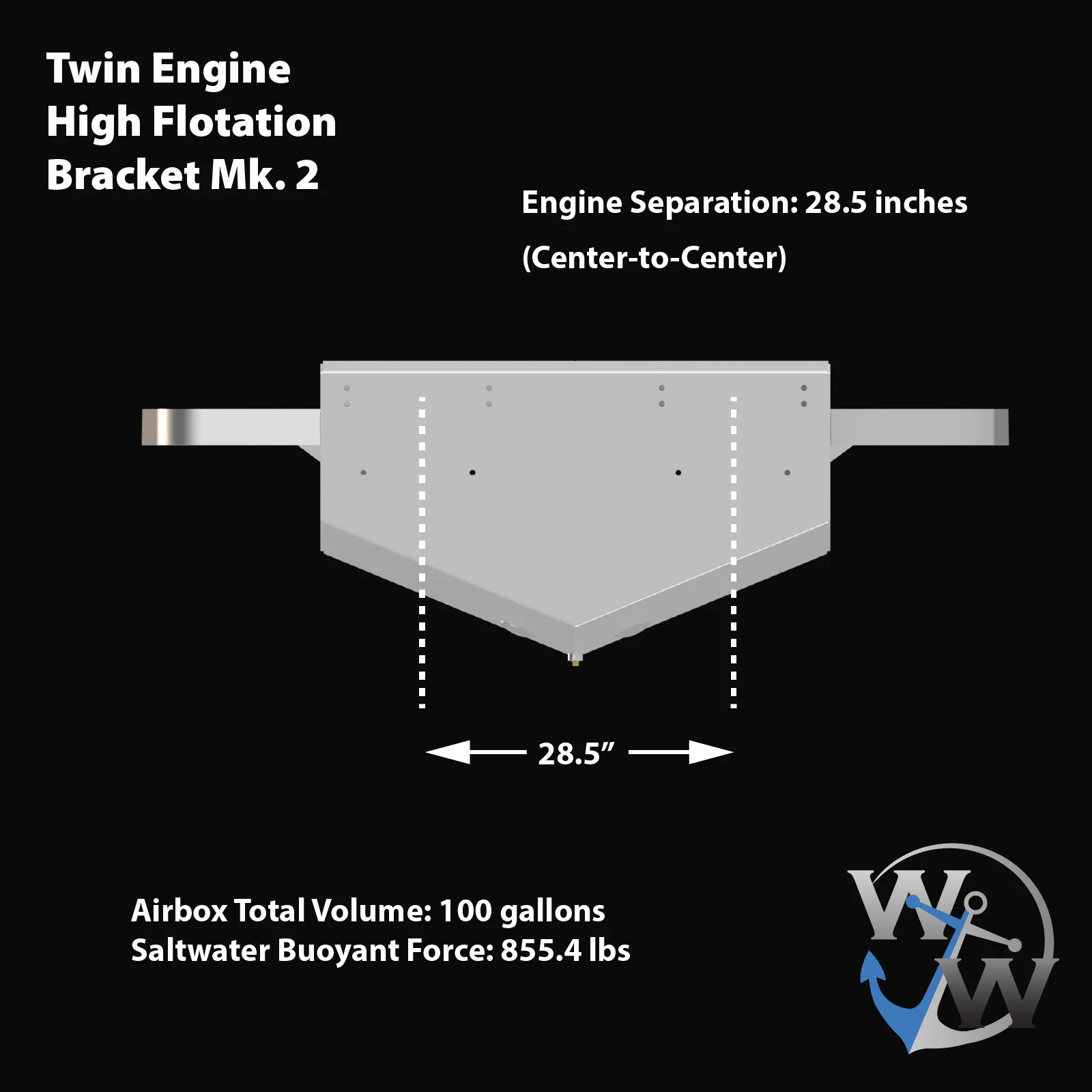

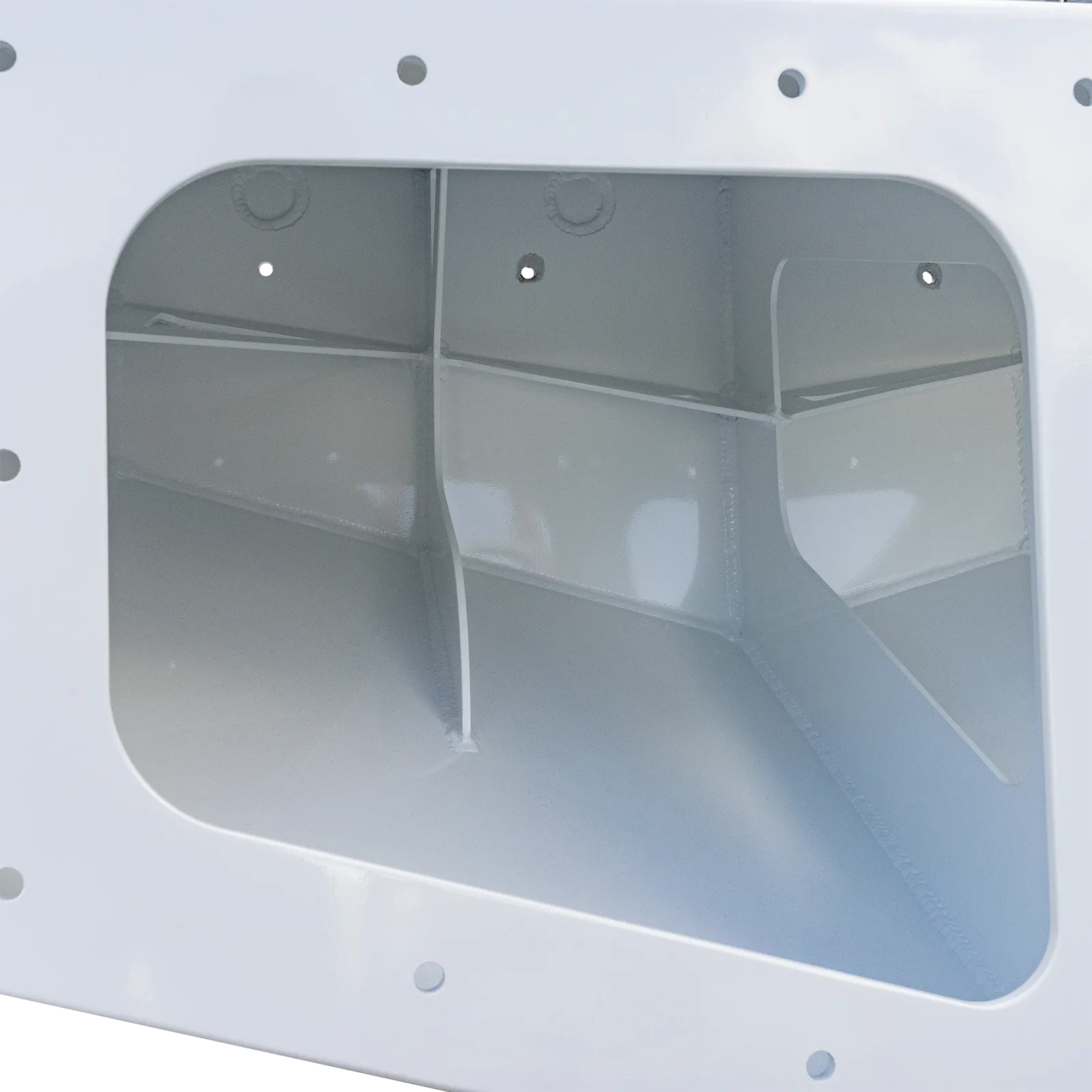

- 100 gallons of added flotation volume in the deep-vee-shaped airbox for added at-rest stability.
- Exclusive dual-electrostatic powder-coatings: primer gloss powder coating for the ultimate marine environment protection. We first apply an electrostatic primer coat, oven-cure it, and then apply a thick, high-mil powder coating for the final external coating. No other competitor in the market goes that far to ensure your new bracket's appearance and durability.

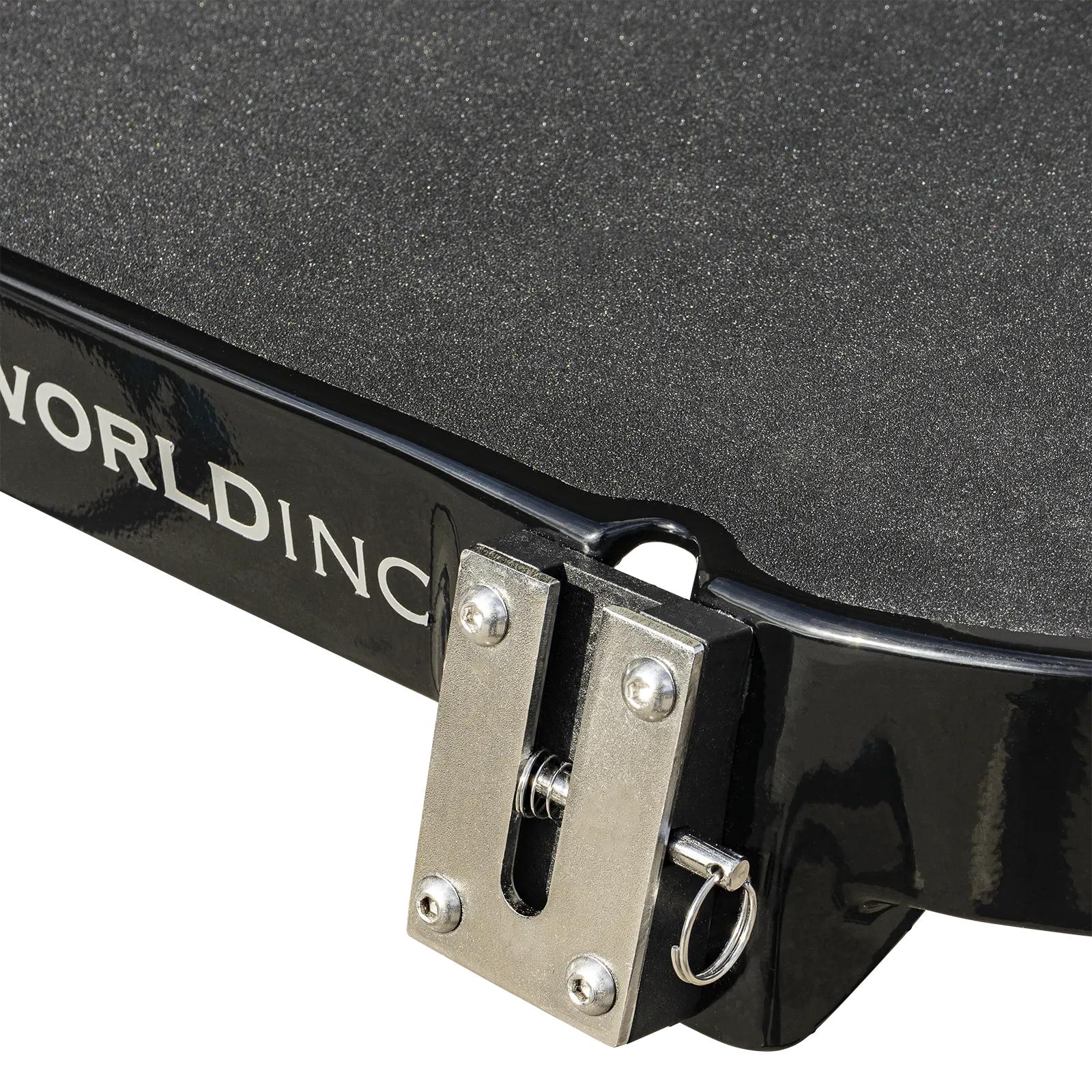

- Awlgrip® Griptex textured, anti-slip treatment to the platform's top surface ensures perfect traction, safety, and durability when wet.
- 4 x 3.75 x 0.5-inch aluminum-specific sacrificial anodes (zincs).

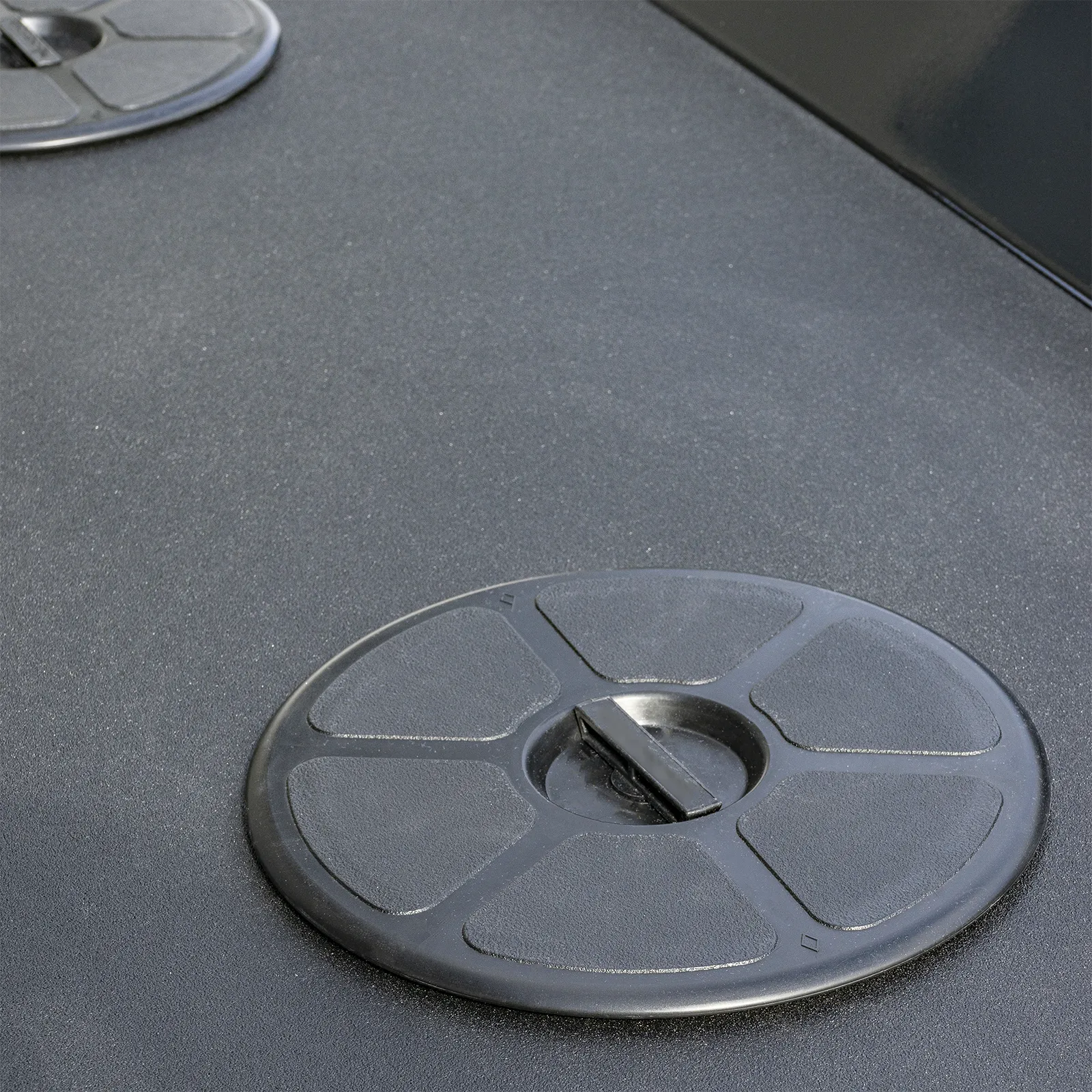

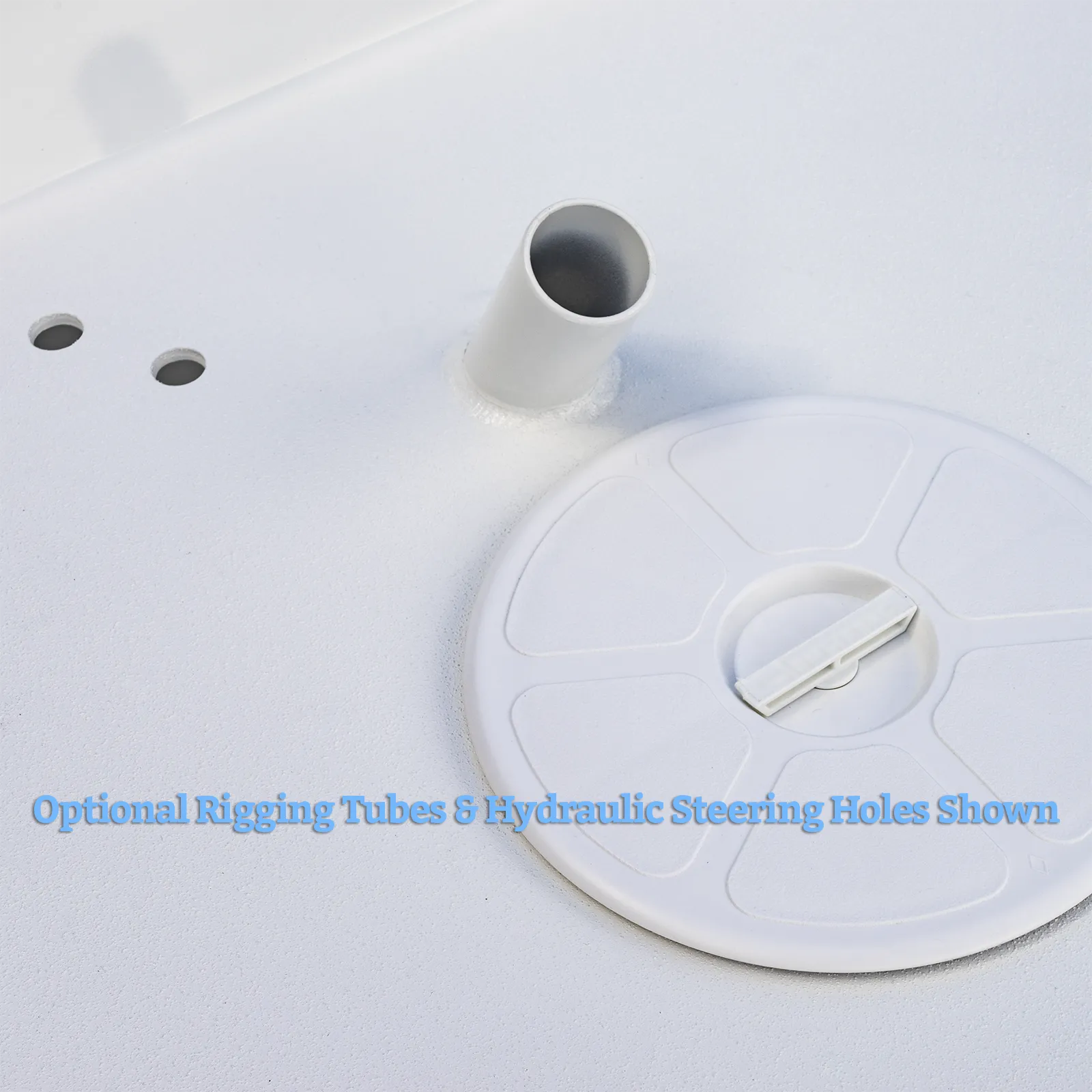

- Twist-off, wide 8-inch easy access marine spec hatch.

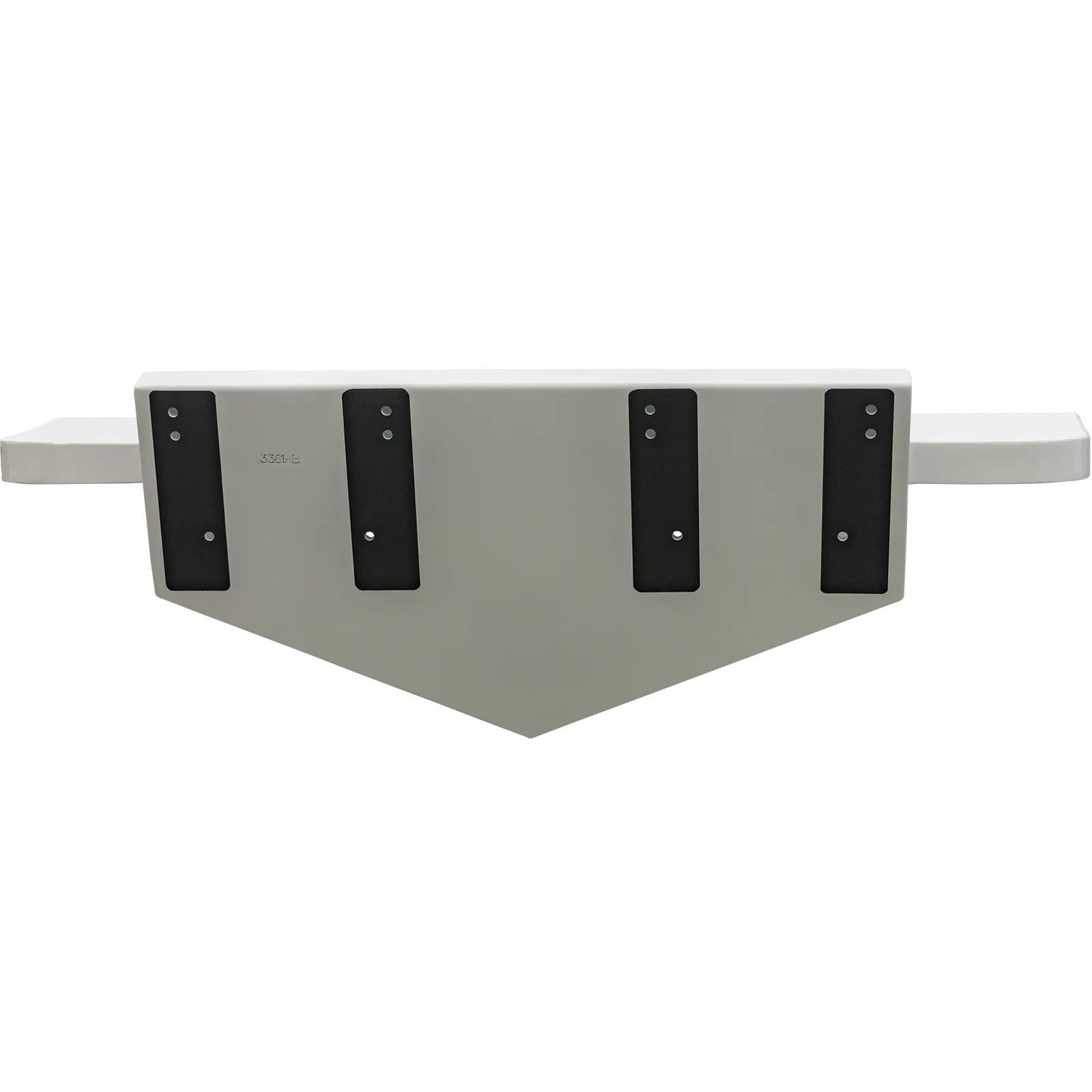

- Includes all mounting 1/4" thick aluminum backing plates, High-grade SS screws, and SS locknuts.
- 3-year limited warranty.
